GLS Machine

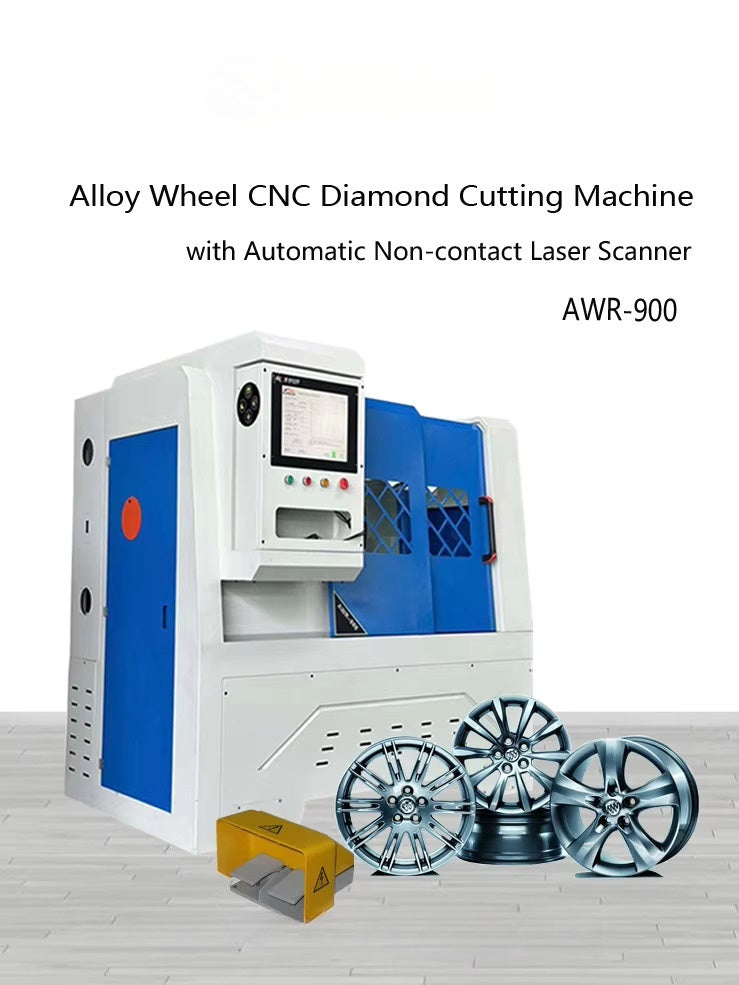

Diamond Cutting Machine 01
Diamond Cutting Machine 01
Unit: 1 set
Couldn't load pickup availability
With the application of the laser scanning technology, it can read wheel shape data with high precision and high efficiency; With the application of the digital control technology, it can accurately control the wheel drawing thickness and grain parameters; Minimize the wear and tear on the diamond blade; Motorized chuck which is Newly upgraded can realize quick installation and uninstallation of wheels; Applicable to different kinds of wheels (the wheels of special center holes is available).

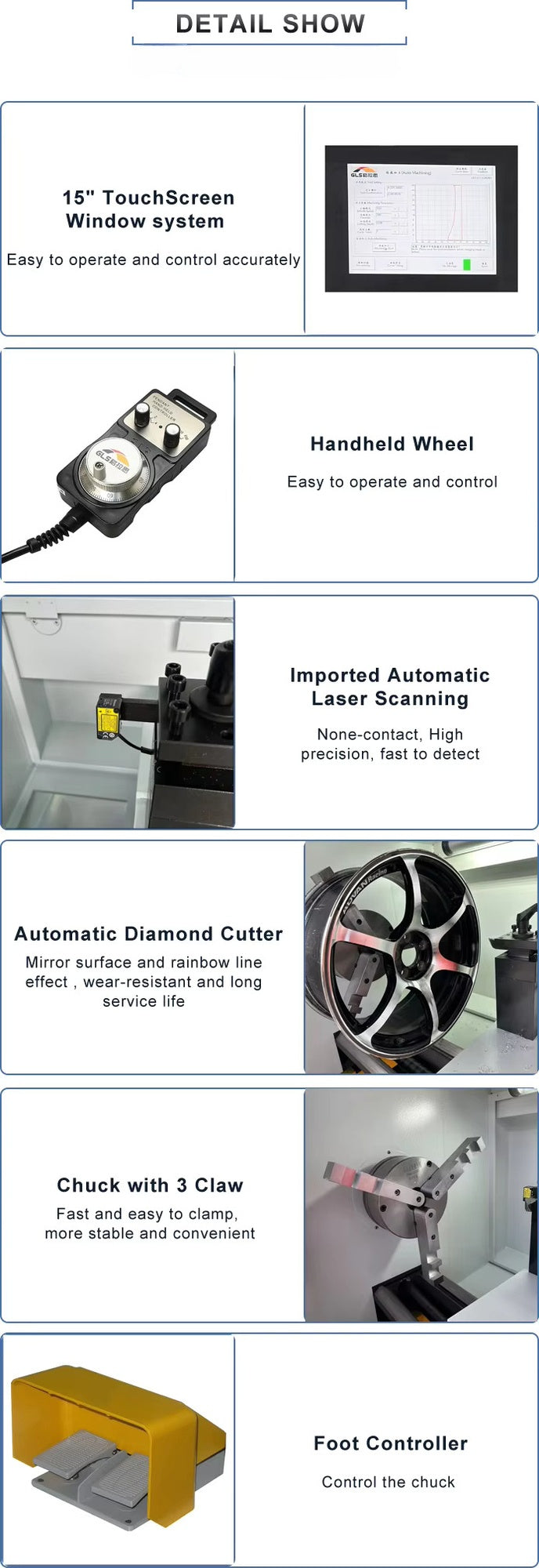

1. Rotary electric tool holder, angle adjustable.
2. 17-inch industrial display screen, touch control, multi-language optional.
3. Self-developed wheel repair software can automatically optimize.
4. Laser detection system with high scanning precision.
5.,Electric chucks, easy to install.
6. X/Z axis linear guide rail, high processing precision and fast movement speed.
Place of Origin: Fujian, China
Warranty: 24 Months
Model Number：AWR-900
Maximum clamping wheel size: 34.1 inch
X-axis travel (Diameter): 700mm
X/Z feed accuracy: 0.001mm
Spindle speed: 50-1800rpm
Chuck / Flange：electric chuck
Dimension Size: 2100*1550*1700mm
Rated voltage: 3phase 380V/ 1phase 220V/ Customizable
Frequency: 50HZ
Power: 5.5KW
Weight: 1200kg
Delivery Time:10-20 Days after payment
