GLS Machine

Diamond Cutting Machine 02

Diamond Cutting Machine 02

$5,799.00 USD
$6,550.00 USD $5,799.00 USD
Sale Sold out
The price of the product does not include the shipping costs, please communicate with the customer service to confirm the shipping costs, and pay separately. Our Shipping Policy

Unit: 1 set

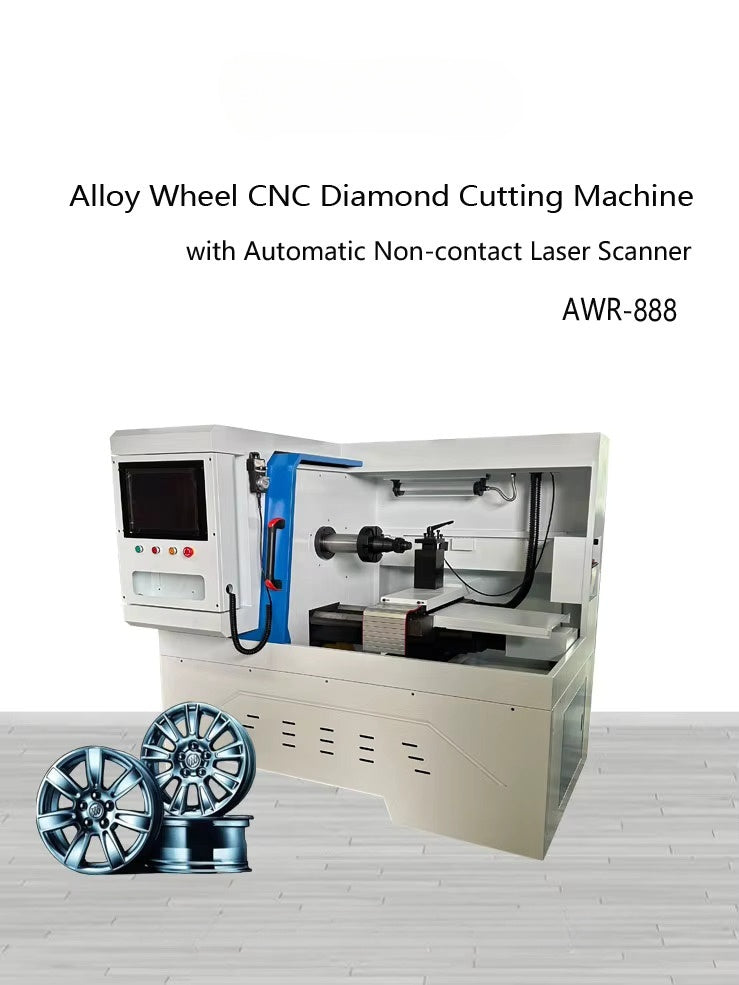

With the application of the laser scanning technology, it can read wheel shape data with high precision and high efficiency; No programming required; The host can be connected remotely; the technology has been patented.

View full details
Advantages
Specifications
Video
Advantages

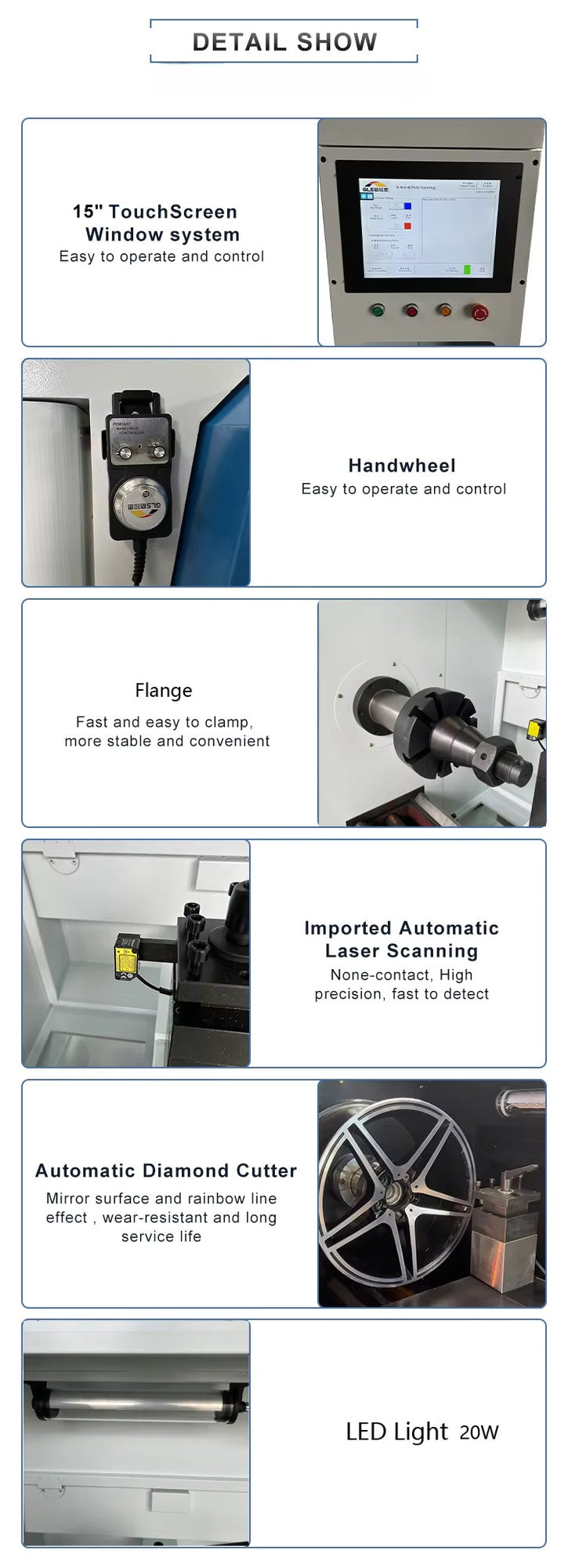

1. Rotary electric tool holder, angle adjustable.

2. 15-inch industrial display screen, touch control, multi-language optional.

3. Self-developed wheel repair software can automatically optimize.

4. Laser detection system with high scanning precision.

Specifications

Place of Origin: Fujian, China

Warranty: 12 Months

Model Number：AWR-888

Maximum clamping wheel size: 31.5 inch

X-axis travel (Diameter): 700mm

X/Z feed accuracy: 0.001mm

Spindle speed: 50-2000rpm

Chuck / Flange：Flange

Dimension Size: 1650*1300*1600mm

Rated voltage: 3phase 380V/ 1phase 220V/ Customizable

Frequency: 50HZ

Power: 5.5KW

Weight: 1000kg

Delivery Time:10-20 Days after payment
